Pressure switch

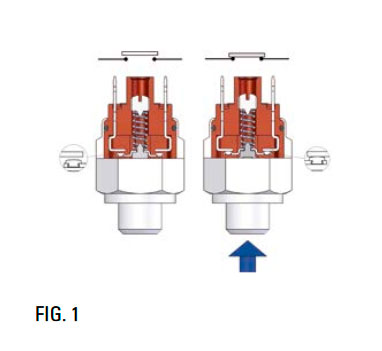

In the NORMALLY OPEN (NO) version (Fig. 1), the contact is open, i.e. there is no flow of current in the absence of pressure. When the pressure setting is reached, the electrical contact closes.

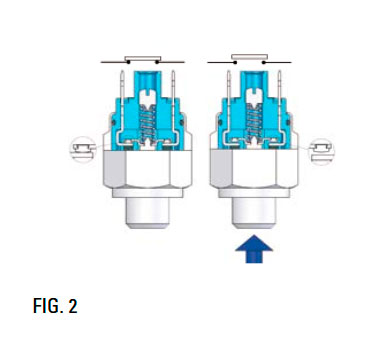

The picture in Fig. 2 shows a pressure switch with NORMALLY CLOSED (NC) contacts in the absence of pressure. We can see that, in the absence of pressure, contacts are closed and the signal is present on the external contacts. When the pressure setting is reached, the electrical contact rises and interrupts the signal.
